Tiêu chuẩn mặt bích Din

Mặt Bích Ren DIN2566 PN10/PN16 Threaded Flange

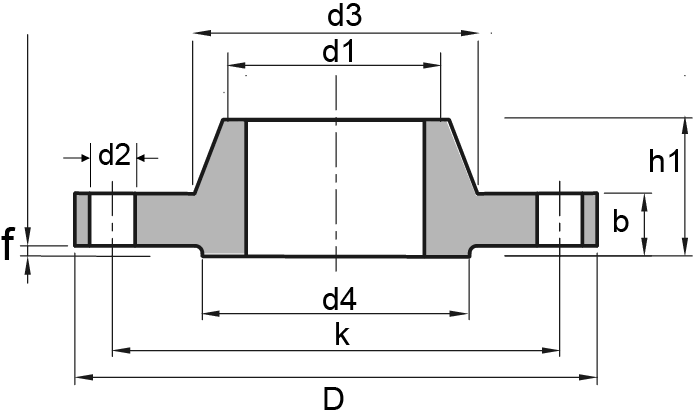

Thông số kỹ thuật:

Nominal	D	C	h	Holes	do	t	G	f
Pipe Size	D	C	h	Holes	do	t	G	f
10	75	50	11	4	18	12	35	2
15	80	55	11	4	22	12	40	2
20	90	65	11	4	27.5	14	50	2
25	100	75	11	4	34.5	14	60	2
32	120	90	14	4	43.5	16	70	2
40	130	100	14	4	49.5	16	80	2
50	140	110	14	4	61.5	16	90	3
65	160	130	14	4	77.5	16	110	3
80	190	150	18	4	90.5	18	128	3
100	210	170	18	4	116	18	148	3
125	240	200	18	8	141.5	20	178	3
150	265	225	18	8	170.5	20	202	3
200	320	280	18	8	221.5	22	258	3
250	375	335	18	12	276.5	24	312	3
300	440	395	22	12	327.5	24	365	3
350	490	445	22	12	359.5	26	415	4
400	540	495	22	16	411	28	465	4
450	595	550	22	16	462	30	520	4
500	645	600	22	20	513.5	30	570	4
600	755	705	26	20	616.5	32	670	5
700	860	810	26	24	777	40*	775	5
800	975	920	30	24	819	44*	880	5
900	1075	1020	30	24	920	48*	980	5
1000	1175	1120	30	28	1022	52*	1080	5
1200	1405	1340	33	32	1227	60*	1295	5
1400	1630	1560	36	36	1427	68*	1510	5
1600	1830	1760	36	40	1628	76*	1710	5
1800	2045	1970	39	44	1828	84*	1920	5
2000	2265	2180	42	48	-	92*	2125	5

GIÁ MẶT BÍCH - MẠ KẼM NHÚNG NÓNG (01/03/2014)

TÊN HÀNG		MẶT BÍCH BS			MẶT BÍCH JIS			MẶT BÍCH BS4504			ANSI #150
TÊN HÀNG		BS5K	BS10K	Mù 10K	JIS10K	JIS20K	MÙ JIS10K	PN16	Mù PN16	PN25	ANSI #150
DN15	Ø 21	24,000	30,000	42,000	37,000	-	51,000	40,000	54,000	46,000	64,000
DN20	Ø 27	29,000	33,000	46,000	48,000	-	67,000	46,000	61,000	54,000	76,000
DN25	Ø 34	31,000	44,000	62,000	58,000	-	82,000	54,000	73,000	66,000	91,000
DN32	Ø 42	35,000	52,000	73,000	63,000	68,000	88,000	66,000	90,000	84,000	93,000
DN40	Ø 49	40,000	55,000	77,000	65,000	84,000	91,000	84,000	114,000	114,000	105,000
DN50	Ø 60	49,000	63,000	88,000	89,000	100,000	124,000	96,000	131,000	156,000	114,000
DN65	Ø 76	56,000	77,000	107,000	109,000	131,000	152,000	134,000	182,000	186,000	166,000
DN80	Ø 90	70,000	93,000	130,000	131,000	189,000	184,000	156,000	212,000	240,000	223,000
DN100	Ø 114	81,000	103,000	144,000	160,000	223,000	224,000	198,000	269,000	276,000	338,000
DN125	Ø 141	97,000	131,000	184,000	171,000	366,000	240,000	276,000	376,000	360,000	389,000
DN150	Ø 168	126,000	185,000	259,000	257,000	486,000	360,000	348,000	473,000	456,000	457,000
DN200	Ø 219	189,000	234,000	328,000	360,000	606,000	504,000	504,000	685,000	660,000	709,000
DN250	Ø 273	263,000	360,000	504,000	514,000	-	720,000	780,000	1,060,000	936,000	903,000
DN300	Ø 325	343,000	480,000	672,000	566,000	-	792,000	972,000	1,321,000	1,176,000	1,491,000
DN350	Ø 355	555,000	566,000	793,000	807,000	-	1,131,000	1,500,000	2,039,000	2,100,000	2,411,000
DN400	Ø 406	628,000	841,000	1,178,000	1,234,000	-	1,727,000	1,860,000	2,528,000	2,460,000	3,129,000
DN450	Ø 457	729,000	998,000	1,397,000	1,626,000	-	2,277,000	2,700,000	3,670,000	3,280,000	-
DN500	Ø 508	785,000	1,110,000	1,554,000	1,963,000	-	2,748,000	3,360,000	4,567,000	4,440,000	-
DN550	Ø 556	1,009,000	1,402,000	1,963,000	2,860,000	-	4,004,000	4,380,000	5,953,000	5,322,000	-
DN600	Ø 610	1,851,000	2,636,000	3,690,000	3,589,000	-	5,024,000	5,220,000	7,096,000	6,600,000	-

GIÁ MẶT BÍCH – XI KẼM (01/03/2014)

TÊN HÀNG		MẶT BÍCH BS			MẶT BÍCH JIS			MẶT BÍCH BS4504			ANSI #150
TÊN HÀNG		BS5K	BS10K	Mù 10K	JIS10K	JIS20K	MÙ JIS10K	PN16	Mù PN16	PN25	ANSI #150
DN15	Ø 21	22,000	27,000	38,000	34,000	-	46,000	36,000	49,000	42,000	58,000
DN20	Ø 27	26,000	30,000	42,000	44,000	-	61,000	42,000	55,000	49,000	69,000
DN25	Ø 34	28,000	40,000	56,000	53,000	-	75,000	49,000	66,000	60,000	83,000
DN32	Ø 42	32,000	47,000	66,000	57,000	62,000	80,000	60,000	82,000	76,000	85,000
DN40	Ø 49	36,000	50,000	70,000	59,000	76,000	83,000	76,000	104,000	104,000	95,000
DN50	Ø 60	45,000	57,000	80,000	81,000	91,000	113,000	87,000	119,000	142,000	104,000
DN65	Ø 76	51,000	70,000	97,000	99,000	119,000	138,000	122,000	165,000	169,000	151,000
DN80	Ø 90	64,000	85,000	118,000	119,000	172,000	167,000	142,000	193,000	218,000	203,000
DN100	Ø 114	74,000	94,000	131,000	145,000	203,000	204,000	180,000	245,000	251,000	307,000
DN125	Ø 141	88,000	119,000	167,000	155,000	333,000	218,000	251,000	342,000	327,000	354,000
DN150	Ø 168	115,000	168,000	235,000	234,000	442,000	327,000	316,000	430,000	415,000	415,000
DN200	Ø 219	172,000	213,000	298,000	327,000	551,000	458,000	458,000	623,000	600,000	645,000
DN250	Ø 273	239,000	327,000	458,000	467,000	-	655,000	709,000	964,000	851,000	821,000
DN300	Ø 325	312,000	436,000	611,000	515,000	-	720,000	884,000	1,201,000	1,069,000	1,355,000
DN350	Ø 355	505,000	515,000	721,000	734,000	-	1,028,000	1,364,000	1,854,000	1,909,000	2,192,000
DN400	Ø 406	571,000	765,000	1,071,000	1,122,000	-	1,570,000	1,691,000	2,298,000	2,236,000	2,845,000
DN450	Ø 457	663,000	907,000	1,270,000	1,478,000	-	2,070,000	2,455,000	3,336,000	2,982,000	-
DN500	Ø 508	714,000	1,009,000	1,413,000	1,785,000	-	2,498,000	3,055,000	4,152,000	4,036,000	-
DN550	Ø 556	917,000	1,275,000	1,785,000	2,600,000	-	3,640,000	3,982,000	5,412,000	4,838,000	-
DN600	Ø 610	1,683,000	2,396,000	3,355,000	3,263,000	-	4,567,000	4,745,000	6,451,000	6,000,000	-

GIÁ MẶT BÍCH ĐEN CÁC LOẠI (01/06/12)

TÊN HÀNG		MẶT BÍCH BS			MẶT BÍCH JIS			MẶT BÍCH BS4504			ANSI #150
TÊN HÀNG		BS5K	BS10K	Mù 10K	JIS10K	JIS20K	MÙ JIS10K	PN16	Mù PN16	PN25	ANSI #150
DN15	Ø 21	20,000	25,000	35,000	30,000	-	43,000	33,000	45,000	38,000	53,400
DN20	Ø 27	24,000	27,000	38,000	39,000	-	56,000	38,000	51,000	45,000	63,100
DN25	Ø 34	25,000	37,000	51,000	48,000	-	68,000	45,000	61,000	55,000	75,700
DN32	Ø 42	29,000	43,000	61,000	51,000	56,000	73,000	55,000	75,000	70,000	77,700
DN40	Ø 49	33,000	45,000	63,000	53,000	70,000	76,000	70,000	95,000	95,000	87,400
DN50	Ø 60	40,000	52,000	73,000	72,000	83,000	103,000	80,000	109,000	130,000	95,100
DN65	Ø 76	47,000	64,000	90,000	90,000	112,000	129,000	110,000	152,000	155,000	138,100
DN80	Ø 90	59,000	78,000	109,000	110,000	160,000	156,000	130,000	177,000	200,000	185,700
DN100	Ø 114	68,000	87,000	121,000	133,000	189,000	190,000	160,000	224,000	230,000	281,900
DN125	Ø 141	82,000	111,000	155,000	143,000	311,000	204,000	220,000	313,000	300,000	323,800
DN150	Ø 168	106,000	156,000	218,000	214,000	413,000	306,000	280,000	394,000	380,000	381,000
DN200	Ø 219	159,000	197,000	276,000	300,000	515,000	428,000	440,000	571,000	550,000	590,500
DN250	Ø 273	221,000	303,000	424,000	429,000	-	612,000	650,000	883,000	780,000	752,400
DN300	Ø 325	288,000	404,000	565,000	471,000	-	673,000	790,000	1,101,000	980,000	1,242,900
DN350	Ø 355	476,000	486,000	680,000	686,000	-	979,000	1,290,000	1,699,000	1,750,000	2,009,300
DN400	Ø 406	538,000	721,000	1,010,000	1,048,000	-	1,495,000	1,590,000	2,107,000	2,050,000	2,607,500
DN450	Ø 457	625,000	856,000	1,198,000	1,381,000	-	1,971,000	2,400,000	3,058,000	2,733,600	-
DN500	Ø 508	673,000	952,000	1,333,000	1,667,000	-	2,379,000	2,900,000	3,806,000	3,700,000	-
DN550	Ø 556	865,000	1,202,000	1,683,000	2,429,000	-	3,466,000	3,800,000	4,961,000	4,434,600	-
DN600	Ø 610	1,587,000	2,260,000	3,163,000	3,048,000	-	4,350,000	4,500,000	5,913,000	5,500,000	-
